Intelligent Screening for Reliable Wastewater Treatment

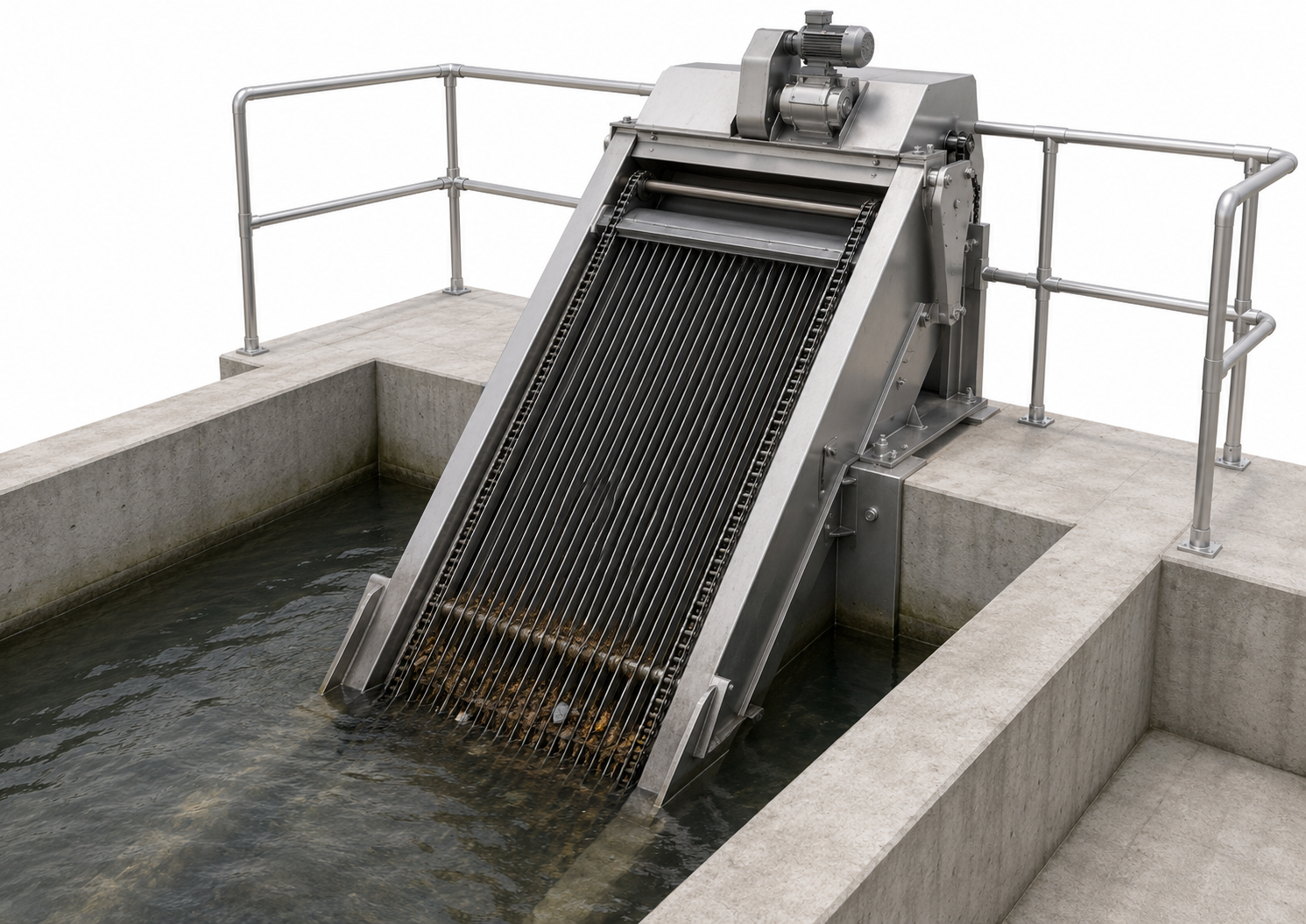

The Biotech Water Mechanical Bar Screen is a heavy-duty automatic screening system designed to remove coarse floating and suspended solids from sewage and industrial wastewater before they enter downstream treatment processes.
Installed at the inlet of STP, ETP, Pumping Stations, and Water Treatment Plants, the screen protects pumps, pipelines, valves, aeration systems, and other mechanical equipment from clogging and damage while reducing maintenance costs.
Channel Depth
Bar Spacing
MOC Options

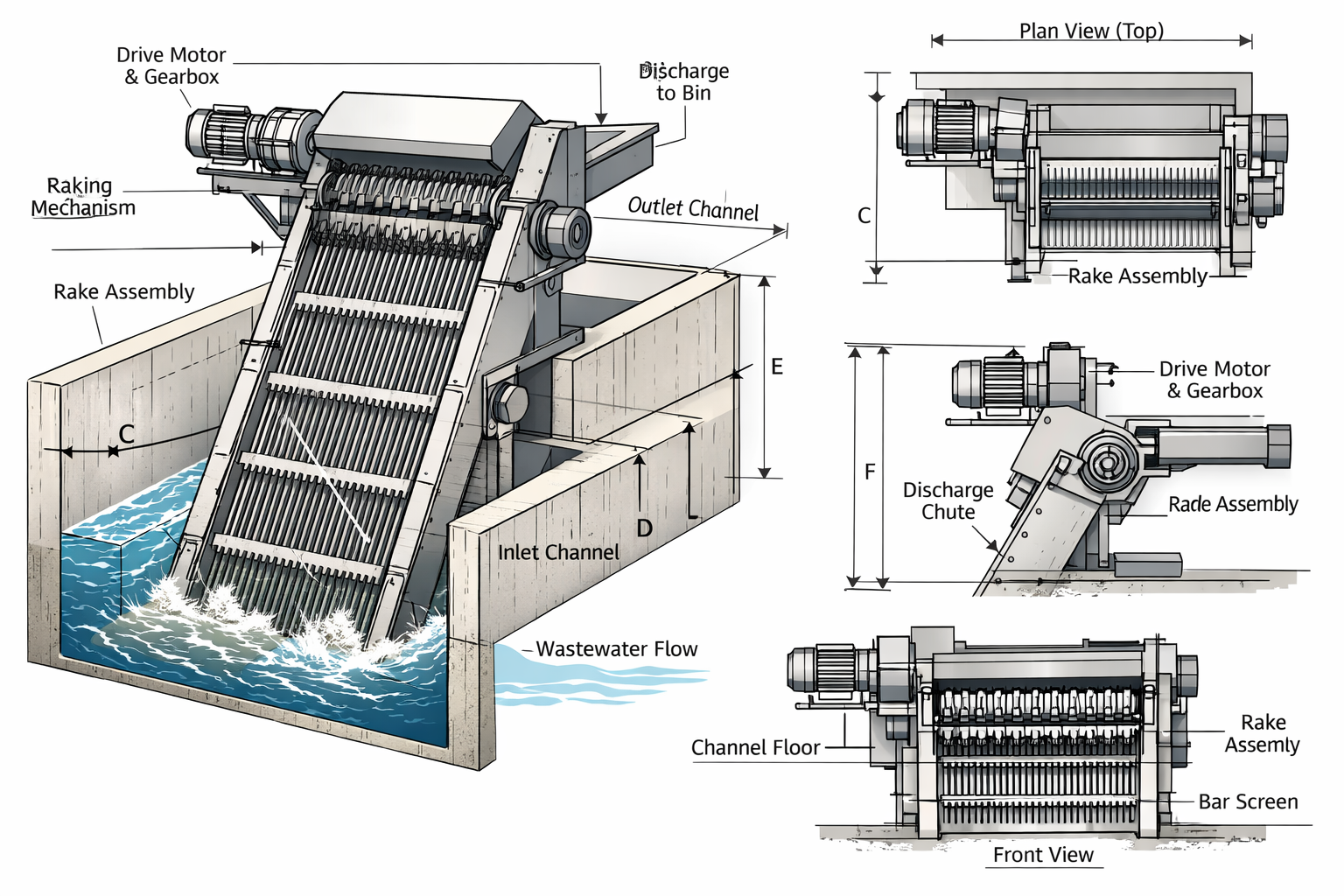

Side Schematic: Multi-Rake reciprocating cleaning action.
Mechanical Bar Screen: How It Works
A continuous, mechanical rake operation designed for high debris loads
Inlet Intake Flow
Raw wastewater flows directly through stationary screen bars installed in the channel.
Debris Retention
Large floating solids, wood pieces, rags, and plastics are retained on the screen surface.
Motor Rake Activation
An efficient motor-driven rake travels upward along the screen bars triggered by timer or differential level.
Upward Extraction
Debris is securely lifted from the screen spacing by the matching teeth of the traveling rake.
Automatic Discharge
Screenings are automatically wiped and discharged into a transport conveyor or collection bin.
Continuous Reset
The clean rake returns to its primary starting position to continue the non-stop protective cycle.
Key Features of mechanical bar screens
Engineered for Harsh Municipal & Industrial Inlet Channels
Unattended cycles via PLC/timer.
Stiffened channel framing structure.
Efficient removal of floating waste.
Minimizes downstream pipeline damage.
Highly efficient helical drive motor.
Built in SS304 or SS316 options.
Easy system integration & controls.
Accommodates depths up to 12m.
Technical Specifications
| Channel Width | 300 – 3000 mm |
| Channel Depth | Up to 12 m |
| Bar Spacing | 3, 6, 10, 15, 20, 30, 50 mm |
| Flow Capacity | Up to 10,000 m³/hr |
| Screen Angle | 60° – 75° |
| Motor Rating | 0.37 – 5.5 kW |
| Material | SS304 / SS316 |
Standard Mechanical Bar Screen Models
Select the standard channel width corresponding to your plant site specifications
| Model Name | Channel Width (mm) | Debris Removal Type |
|---|---|---|
| BMW-MBS-300 | 300 mm | Reciprocating Multi-Rake |
| BMW-MBS-500 | 500 mm | Reciprocating Multi-Rake |
| BMW-MBS-800 | 800 mm | Reciprocating Multi-Rake |
| BMW-MBS-1000 | 1000 mm | Reciprocating Multi-Rake |
| BMW-MBS-1500 | 1500 mm | Reciprocating Multi-Rake |
| Custom Built | Up to 3000 mm | Custom Hydraulic Design |
